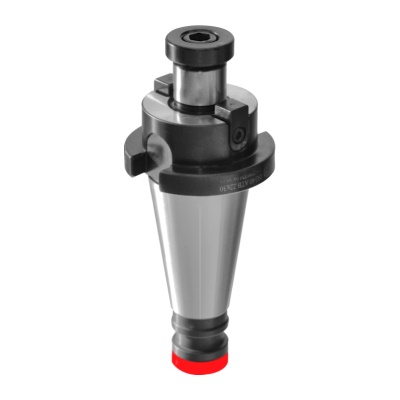

Shell mill holder DIN 6357 for cutters with driving slot
|
|
|

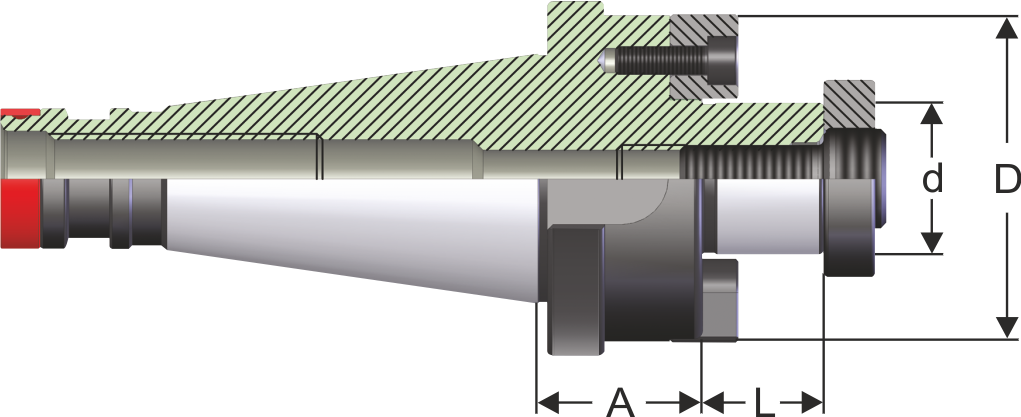

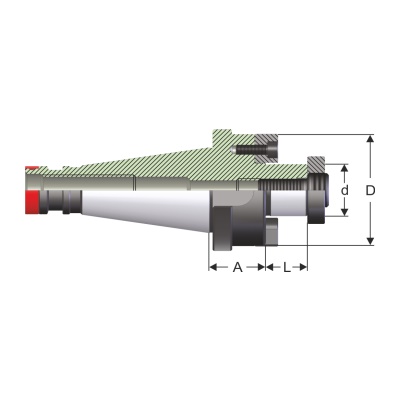

d h6 |
A | D | L |
| 234016 | ISO 40 - 16 | 16 | 30 | 38 | 17 |
| 234022 | ISO 40 - 22 | 22 | 30 | 48 | 19 |
| 234027 | ISO 40 - 27 | 27 | 30 | 58 | 21 |
| 234032 | ISO 40 - 32 | 32 | 30 | 78 | 24 |
| 234040 | ISO 40 - 40 | 40 | 30 | 88 | 27 |
| 235016 | ISO 50 - 16 | 16 | 35 | 38 | 17 |
| 235022 | ISO 50 - 22 | 22 | 35 | 48 | 19 |
| 235027 | ISO 50 - 27 | 27 | 35 | 58 | 21 |
| 235032 | ISO 50 - 32 | 32 | 40 | 78 | 24 |
| 235040 | ISO 50 - 40 | 40 | 33 | 88 | 27 |
