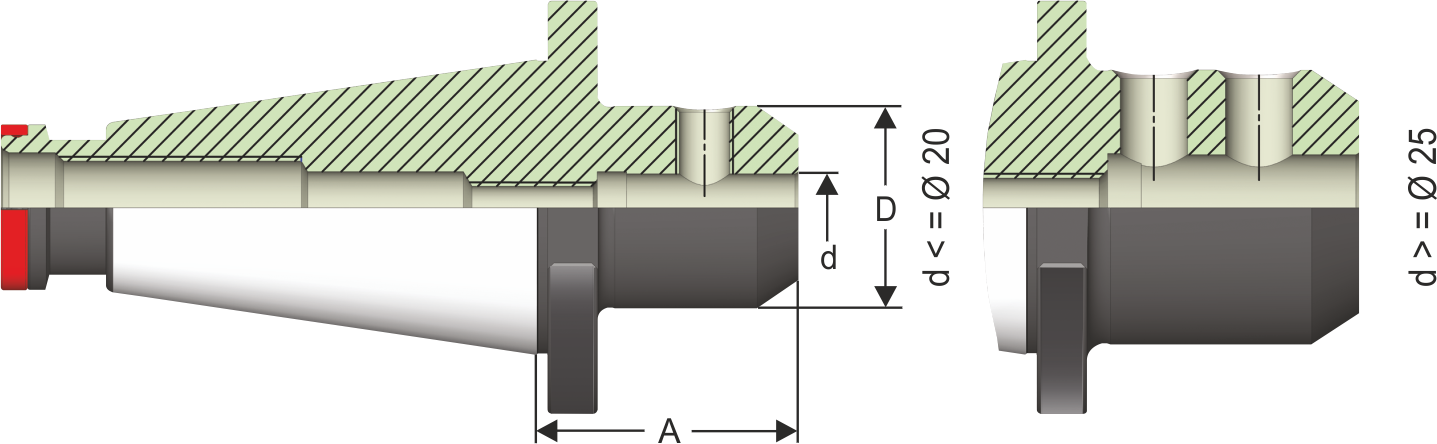

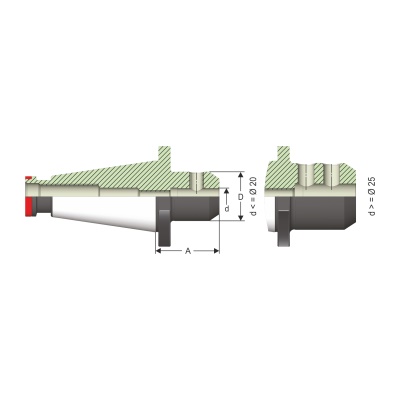

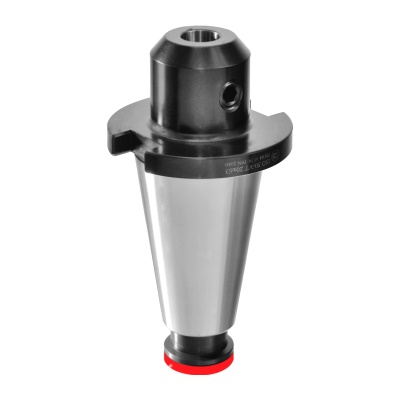

End mill holder DIN 6359 for weldon type end mills DIN 1835-B
|
|
|
d H5 |
D | A |
| 245006 | ISO 50 | 6 | 25 | 63 |
| 245008 | ISO 50 | 8 | 28 | 63 |
| 245010 | ISO 50 | 10 | 35 | 63 |
| 245012 | ISO 50 | 12 | 42 | 63 |
| 245014 | ISO 50 | 14 | 44 | 63 |
| 245016 | ISO 50 | 16 | 48 | 63 |
| 245018 | ISO 50 | 18 | 50 | 63 |
| 245020 | ISO 50 | 20 | 52 | 63 |
| 245025 | ISO 50 | 25 | 65 | 80 |
| 245032 | ISO 50 | 32 | 72 | 80 |
| 245040 | ISO 50 | 40 | 80 | 90 |
