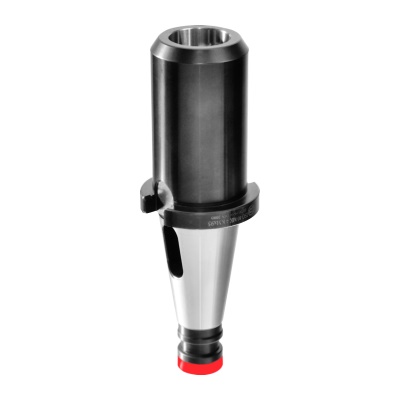

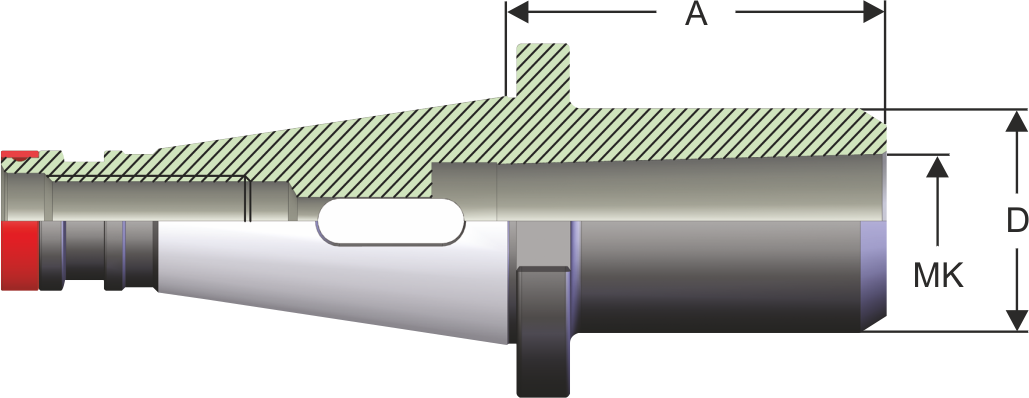

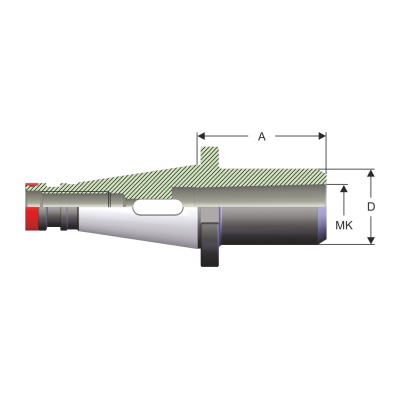

Morse taper adaptor DIN 6383
|
|
|
Morse |
A | D |
| 253001 | ISO 30 | 1 | 50 | 25 |
| 253002 | ISO 30 | 2 | 50 | 32 |
| 253003 | ISO 30 | 3 | 75 | 40 |
| 254001 | ISO 40 | 1 | 50 | 25 |
| 254002 | ISO 40 | 2 | 50 | 32 |
| 254003 | ISO 40 | 3 | 65 | 40 |
| 254004 | ISO 40 | 4 | 95 | 48 |
| 255001 | ISO 50 | 1 | 45 | 25 |
| 255002 | ISO 50 | 2 | 60 | 32 |
| 255003 | ISO 50 | 3 | 65 | 40 |
| 255004 | ISO 50 | 4 | 70 | 48 |
| 255005 | ISO 50 | 5 | 105 | 63 |
