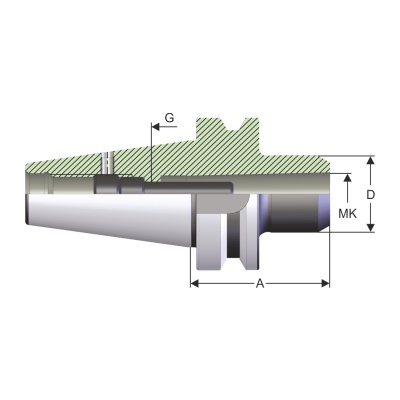

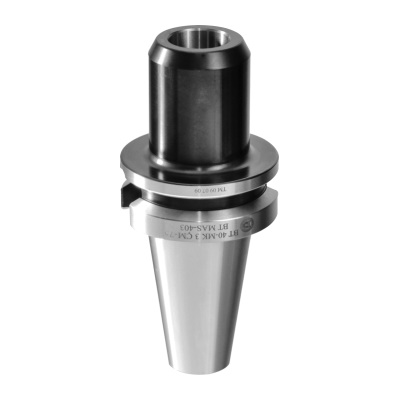

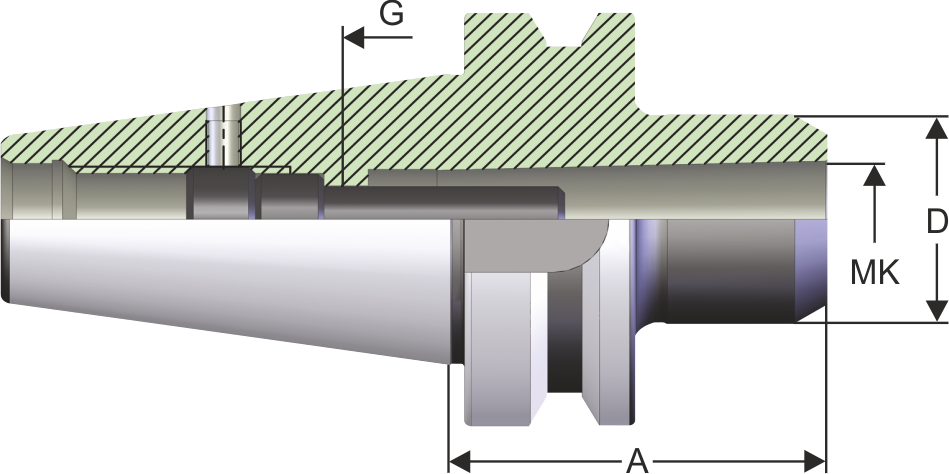

Morse taper adaptor drawbar DIN 6364
|
|
|
Morse |
D |
A |
G |
| 364001 | BT 40 | 1 | 25 | 50 | M - 6 |
| 364002 | BT 40 | 2 | 32 | 55 | M - 10 |
| 364003 | BT 40 | 3 | 40 | 75 | M - 12 |
| 364004 | BT 40 | 4 | 48 | 95 | M - 16 |
| 365001 | BT 50 | 1 | 25 | 45 | M - 6 |
| 365002 | BT 50 | 2 | 32 | 60 | M - 10 |
| 365003 | BT 50 | 3 | 40 | 65 | M - 12 |
| 365004 | BT 50 | 4 | 63 | 85 | M - 16 |
| 365005 | BT 50 | 5 | 78 | 118 | M - 20 |
